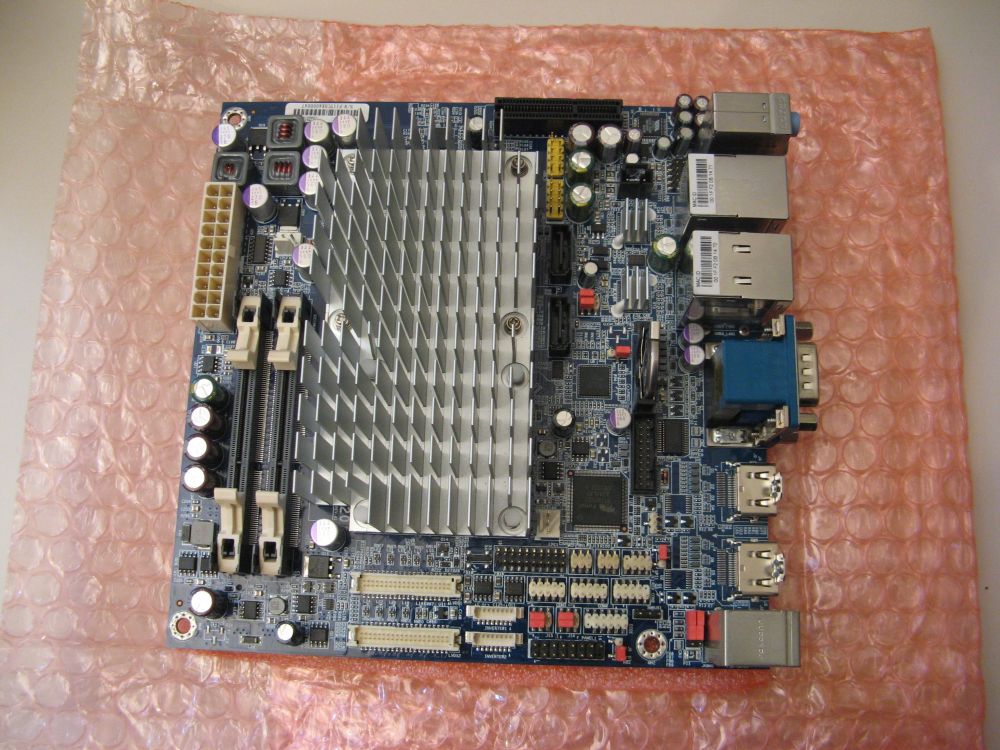

VIA EPIA-M920

Model Name: EPIA-M920-10E
Processor: 1.0GHz VIA Eden® X2 (fanless)
Chipset: VIA VX11H Media System Processor
BIOS: AMI Aptio UEFI BIOS, 4Mbit Flash memory
System Memory: 2 DDR3 1333 SODIMM slots, Up to 8GB memory per slot
Storage: 2 SATA connectors
Graphics: Integrated Chrome® 640 DX11 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration
LAN: 2 VIA VT6130 PCIe Gigabit Ethernet controllers
Audio: VIA VT2021 High Definition Audio Codec
Super I/O: Fintek F81801U-I
Expansion I/O: 1 PCIe x4 slot
Onboard I/O:
- 2 SATA connectors
- 2 SATA DOM power selectors
- 1 USB 3.0 pin header for 1 port
- 2 USB 2.0 pin headers for 4 ports
- 1 Dual channel 18/24-bit LVDS panel connector
- 1 Single channel 18/24-bit LVDS panel connector
- 3 COM port pin headers (powered with selectable 5V/12V)
- 1 LPC pin header
- 1 SMBus pin header
- 1 S/PDIF-out connector
- 1 Digital I/O pin header (4 GPI + 4 GPO)
- 1 Front audio pin header for Line-out, Mic-in
- 2 Smart Fan pin headers for CPU and system
- 2 Backlight control connectors for inverter power and brightness control
- 1 SD card (SDHC/SDXC) pin header
- 1 ATX power connector
- 1 PCIe x4 slot
Back Panel I/O:
- 2 USB 3.0 ports
- 2 HDMI ports
- 1 VGA port
- 1 COM (powered with selectable 5V/12V)
- 2 Gigabit Ethernet ports
- 3 Audio jacks: Line-in, Line-out, and Mic-in
- 2 PS/2 keyboard/mouse ports
Power Supply: ATX power connector
System Monitoring & Management:
Wake-on-LAN, Keyboard Power-on, Timer Power-on, System power management,
AC power failure recovery, Watch Dog Timer
